| Lifting Capacity: | 5 Ton |

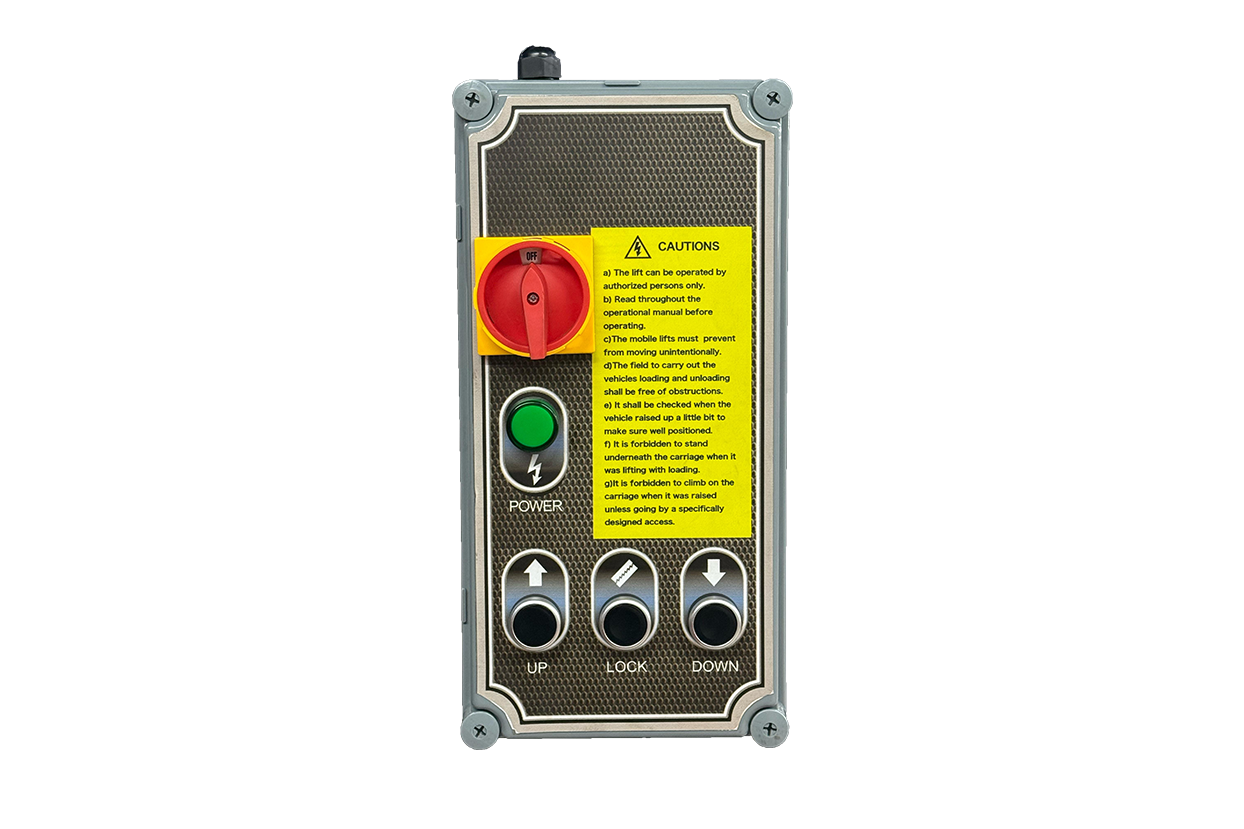

| Control: | Tam Otomatik |
| Maximum Lifting Height: | 1800 mm |
| Distance Between Columns : | 3200 mm |
| Overall Lift Width: | 3760 mm |
| Column Height: | 3760 mm |
| Column Width: | 380 mm |
| Short Arm Length: | 800 - 1100 - 1400 mm |

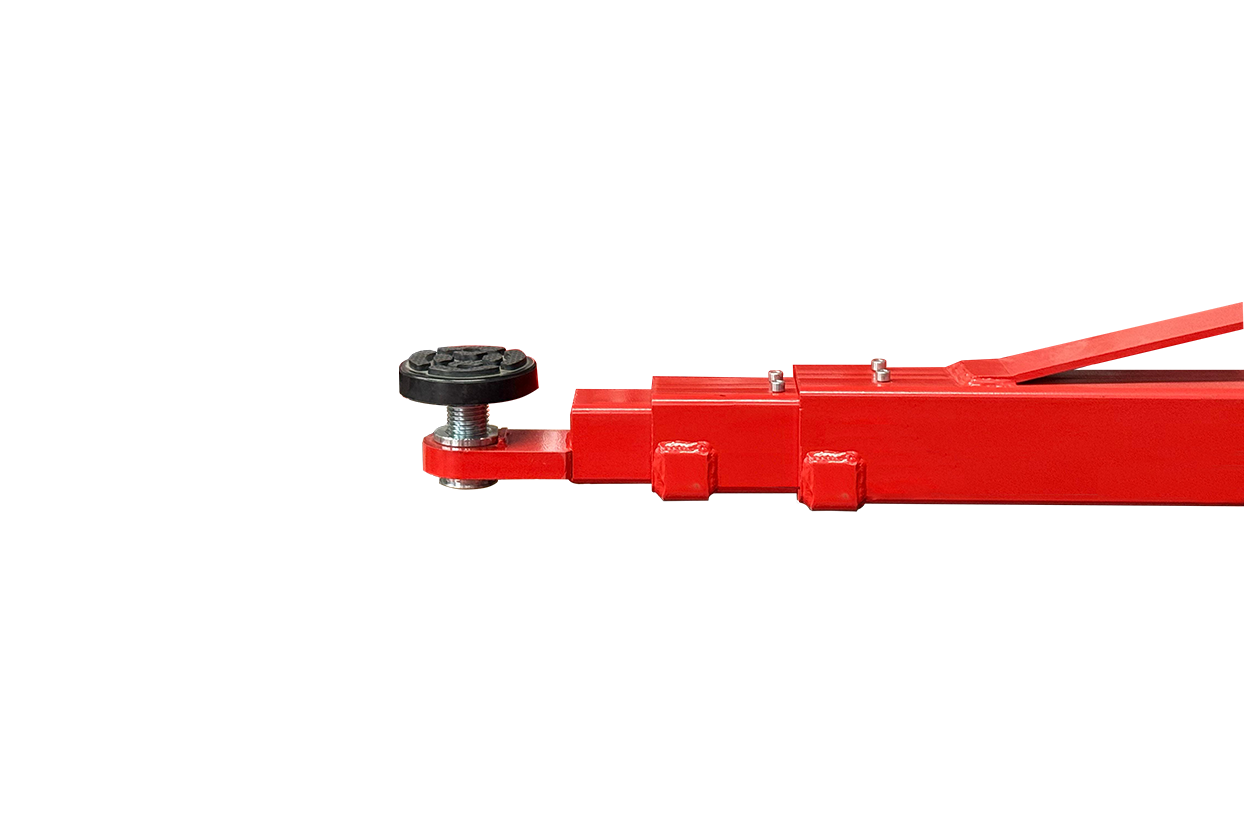

| Long Arm Length: | 870 - 1200 - 1500 mm |
| Lifting Time: | 50 sn |
| Lowering Time: | 30 sn |
| Motor Power: | 2.2 kW/3 Hp |
| Voltage: | 380V/220V |
| Weight: | 700 kg |
| Packaged Dimensions: | 3340x520x720 mm |
The GPL 103U overhead hydraulic lift offers safe lifting for large vehicles with its 5-ton capacity and overhead design. The upper crossbeam allows free floor access, making movement under the vehicle easier. Its fully automatic control system ensures safe and efficient operation. Adjustable arms fit various vehicle types. Designed for heavy-duty, professional workshop use, it delivers reliability and performance.
