| Lifting Capacity: | 5 Ton |
| Control: | Tam Otomatik |
| Maximum Lifting Height: | 1800 mm |
| Distance Between Columns : | 3190 mm |
| Overall Lift Width: | 3800 mm |
| Column Height: | 2700 mm |
| Column Width: | 380 mm |
| Short Arm Length: | 800 - 1100 - 1400 mm |
| Long Arm Length: | 870 - 1200 - 1500 mm |
| Lifting Time: | 50 sn |
| Lowering Time: | 30 sn |
| Motor Power: | 2.2 kW/3 Hp |
| Voltage: | 380V/220V |
| Weight: | 650 kg |
| Packaged Dimensions: | 2840x500x710 mm |

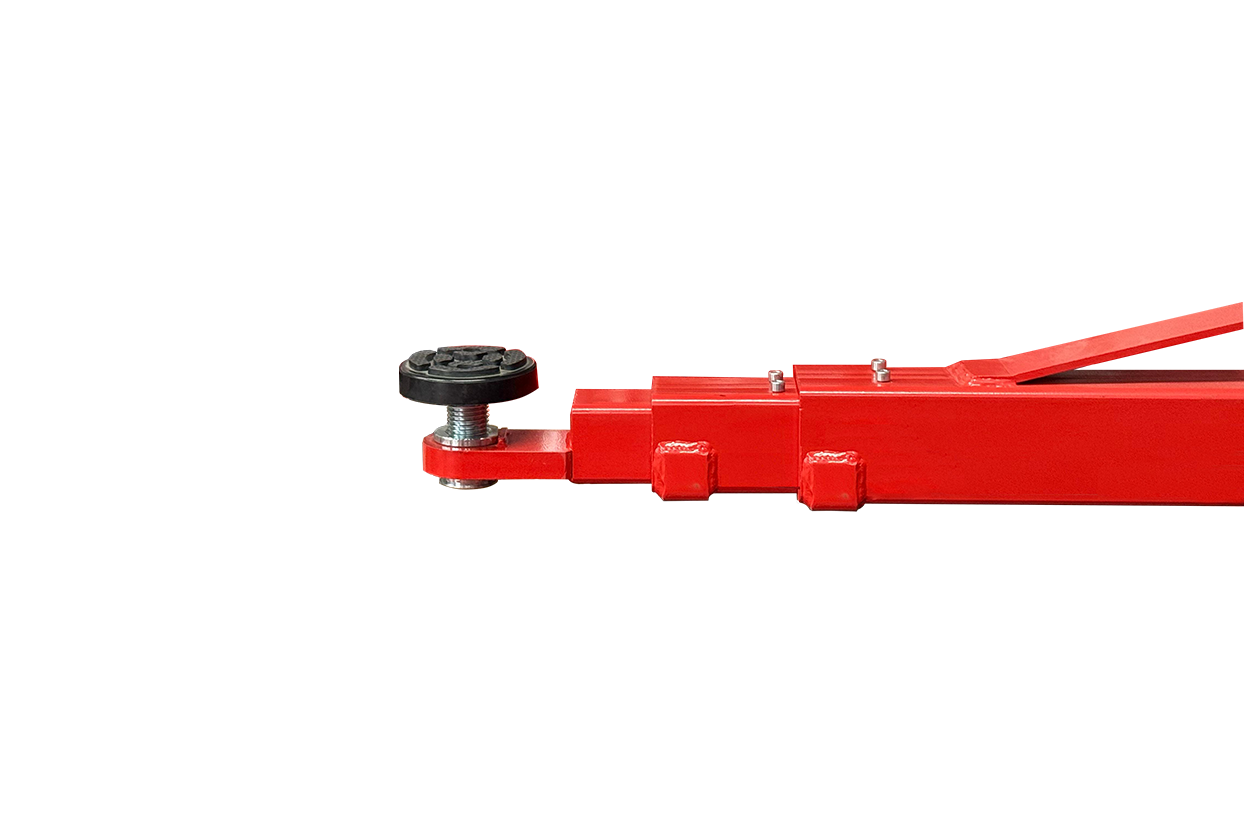

The GPL 103 is a fully automatic hydraulic lift designed to handle heavy-duty vehicles with a 5-ton capacity. Built with a robust frame, powerful motor, and advanced control system, it’s ideal for intensive workshop use. The automatic locking system ensures maximum safety, while adjustable arms make it compatible with various vehicle widths. It’s a high-performance solution for professional workshops dealing with larger or commercial vehicles.
